MRF422 - RF POWER TRANSISTORS

MRF422 Description

MOTOROLA The RF Line SEMICONDUCTOR TECHNICAL DATA Order this document by MRF422/D NPN Silicon RF Power Transistor Designed primarily for applicatio.

MRF422 Applications

* as a high
* power linear amplifier from 2.0 to 30 MHz.
* Specified 28 Volt, 30 MHz Characteristics
* Output Power = 150 W (PEP) Minimum Gain = 10 dB Efficiency = 40%
* Intermodulation Distortion @ 150 W (PEP)
* IMD =
* 30 dB (Min)
* 100% Tested f

📥 Download Datasheet

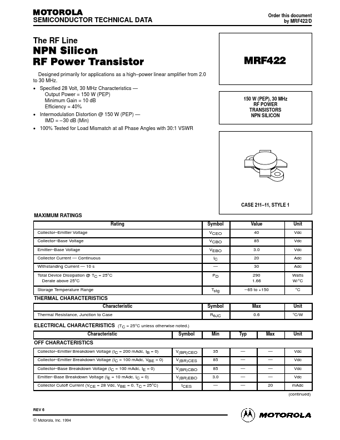

Preview of MRF422 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF422
Manufacturer
Motorola
File Size
97.11 KB
Datasheet
MRF422_Motorola.pdf
Description
RF POWER TRANSISTORS
