MRF421 Datasheet - Tyco Electronics

MRF421 The RF Line NPN Silicon RF Power Transistor

SEMICONDUCTOR TECHNICAL DATA Order this document by MRF421/D The RF Line NPN Silicon RF Power Transistor Designed primarily for application as a high power linear amplifier from 2.0 to 30 MHz. Specified 12.5 Volt, 30 MHz Characteristics Output Power = 100 W (PEP) Minimum Gain = 10 dB Efficiency = 40% Intermodulation Distortion @ 100 W (PEP) IMD = 30 dB (Min) 100% Tested for Load Mismatch at all Phase Angles with 30:1 VSWR MRF.

MRF421 Datasheet (133.56 KB)

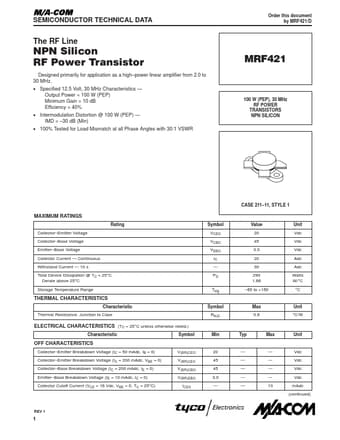

Preview of MRF421 PDF
MRF421 Datasheet Preview Page 2 MRF421 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF421

Manufacturer:

Tyco Electronics

File Size:

133.56 KB

Description:

The rf line npn silicon rf power transistor.
