MRF403, MRF112 Datasheet - NKK

MRF403 - Half-Inch Diameter Process Sealed Rotaries

FOR TYPICAL ORDERING EXAMPLE E F G H MRA206-A Shaft Actuated with Plain Black Knob DP with 2-6 Adjustable Positions PC Terminals ACTUATORS & TERMINALS A Shaft Actuated with PC Terminals F Low Profile Screwdriver Actuated with PC Terminals K Low Profile Shaft Actuated with PC Terminals 12

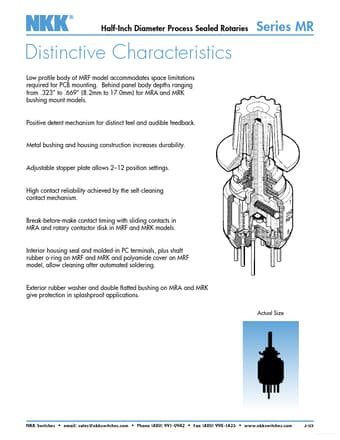

Half-Inch Diameter Process Sealed Rotaries Series MR Distinctive Characteristics Low profile body of MRF model accommodates space limitations required for PCB mounting.

Behind panel body depths ranging from .323” to .669” (8.2mm to 17.0mm) for MRA and MRK bushing mount models.

Positive detent mechanism for distinct feel and audible feedback.

Metal bushing and housing construction increases durability.

Adjustable stopper plate allows 2 12 position settings.

High contact reliability achi

MRF112-NKK.pdf

This datasheet PDF includes multiple part numbers: MRF403, MRF112. Please refer to the document for exact specifications by model.
MRF403 Datasheet Preview Page 2 MRF403 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF403, MRF112

Manufacturer:

NKK

File Size:

179.44 KB

Description:

Half-inch diameter process sealed rotaries.

Note:

This datasheet PDF includes multiple part numbers: MRF403, MRF112.
Please refer to the document for exact specifications by model.
