Datasheet Specifications
- Part number
- MRF479
- Manufacturer
- Advanced Semiconductor
- File Size
- 29.17 KB
- Datasheet
- MRF479_AdvancedSemiconductor.pdf
- Description
- NPN SILICON RF POWER TRANSISTOR
Description

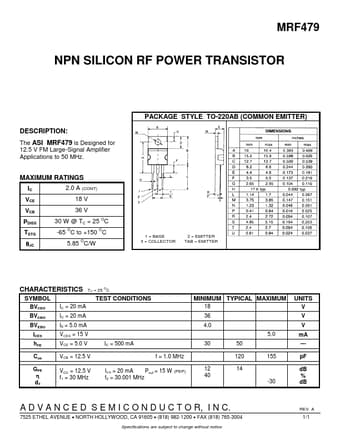

MRF479 NPN SILICON RF POWER TRANSISTOR PACKAGE STYLE TO-220AB (COMMON EMITTER) .
Applications
* to 50 MHz. MAXIMUM RATINGS IC VCE VCB PDISS TSTG θJC O 2.0 A (CONT) 18 V 36 V 30 W @ TC = 25 C -65 C to +150 C 5.85 C/W O O O 1 = BASE 3 = COLLECTOR 2 = EMITTER TAB = EMITTER CHARACTERISTICS SYMBOL BVCEO BVCBO BVEBO ICES hFE Cob GPE η d3 IC = 20 mA IC = 20 mA IE = 5.0 mA TC = 25 C O TEST CONMRF479 Distributors
