MRF476 - HG RF POWER TRANSISTOR

MRF476 Description

HG Semiconductors MRF476HG RF POWER TRANSISTOR ROHS Compliance,Silicon NPN POWER TRANSISTOR .
The HG MRF476 is Designed for 12.

MRF476 Applications

* to 30 MHz. PACKAGE STYLE TO-220AB (COMMON EMITTER) MAXIMUM RATINGS IC 1.0 A VCE 18 V VCB 36 V PDISS 10 W @ TC = 25 °C TSTG -65 °C to +150 °C JC 17.5 °C/W 1 = BASE 2 = COLLECTOR 3 = EMITTER TAB = COLLECTOR CHARACTERISTICS TC = 25 °C SYMBOL TEST CONDITIONS BVCEO IC = 10 mA BVCES IC

📥 Download Datasheet

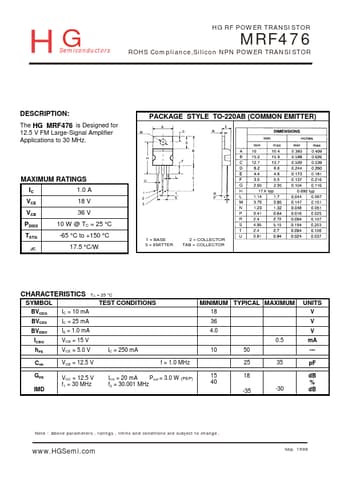

Preview of MRF476 PDF

Datasheet Details

Part number
MRF476
Manufacturer
HGSemi
File Size
179.23 KB
Datasheet
MRF476-HGSemi.pdf
Description
HG RF POWER TRANSISTOR
