HY4903B6 - N-Channel Enhancement Mode MOSFET

📥 Download Datasheet

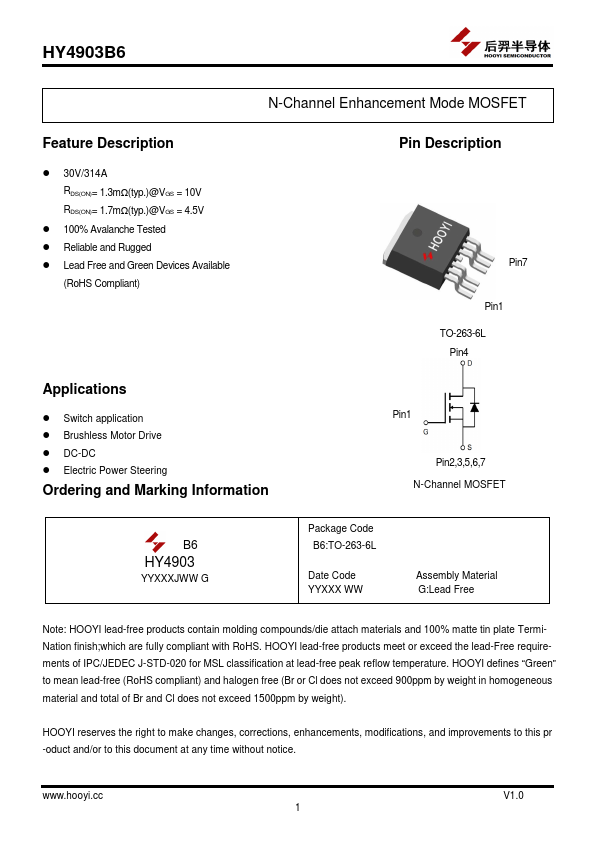

Preview of HY4903B6 PDF

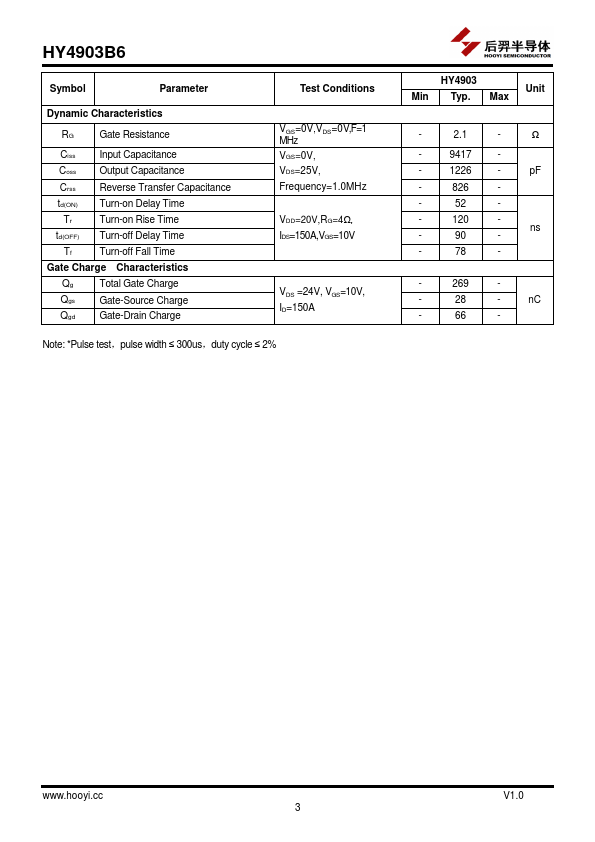

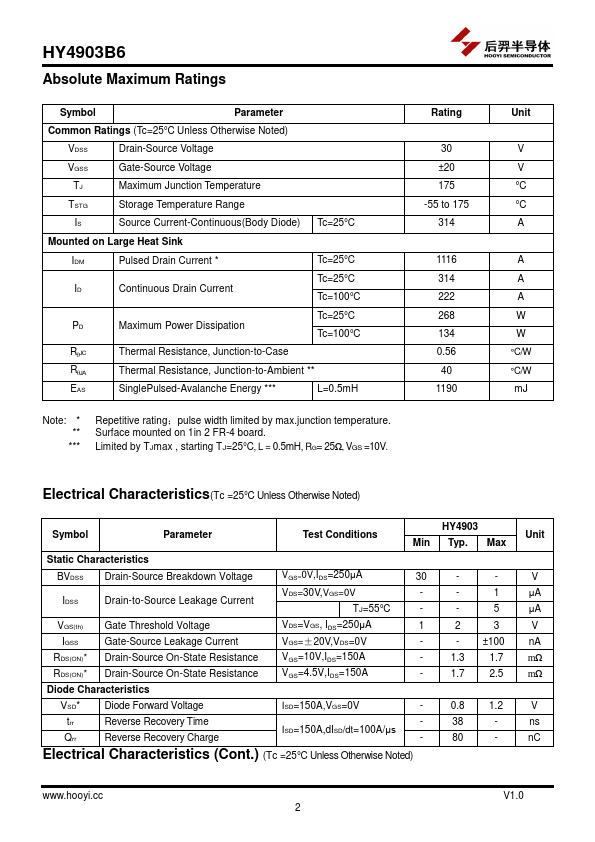

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY4903B6
Manufacturer
HOOYI
File Size
629.05 KB
Datasheet
HY4903B6-HOOYI.pdf
Description
N-Channel Enhancement Mode MOSFET

HY4903B6 Product details

Description

30V/314A RDS(ON)= 1.3mΩ(typ.)@VGS = 10V RDS(ON)= 1.7mΩ(typ.)@VGS = 4.5V 100% Avalanche Tested Reliable and Rugged Lead Free and Green Devices Available (RoHS Compliant) Applications Switch application Brushless Motor Drive DC-DC Electric Power Steering Ordering and Marking Information Pin Description Pin7 Pin1 TO-263-6L Pin4 Pin1 Pin2,3,5,6,7 N-Channel MOSFET B6 HY4903 YY
