HYG180N10LS1P N-Channel Enhancement Mode MOSFET

HOOYI

Description

HYG180N10LS1P&B Single N-Channel Enhancement Mode MOSFET .
TO-220FB-3L TO-263-2L Applications. High Frequency Point-of-Load Synchronous Buck Converter. Power Tool Application Ordering and Marking I.

📥 Download Datasheet

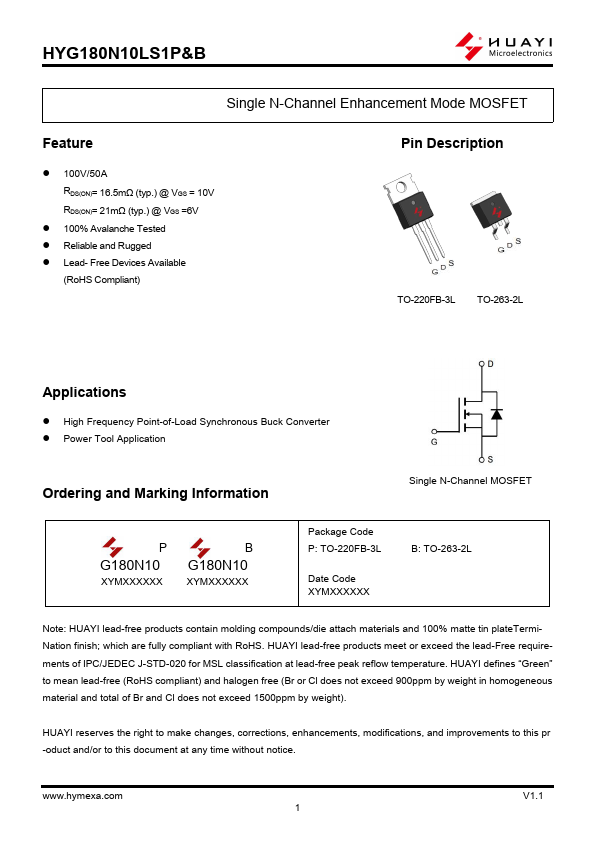

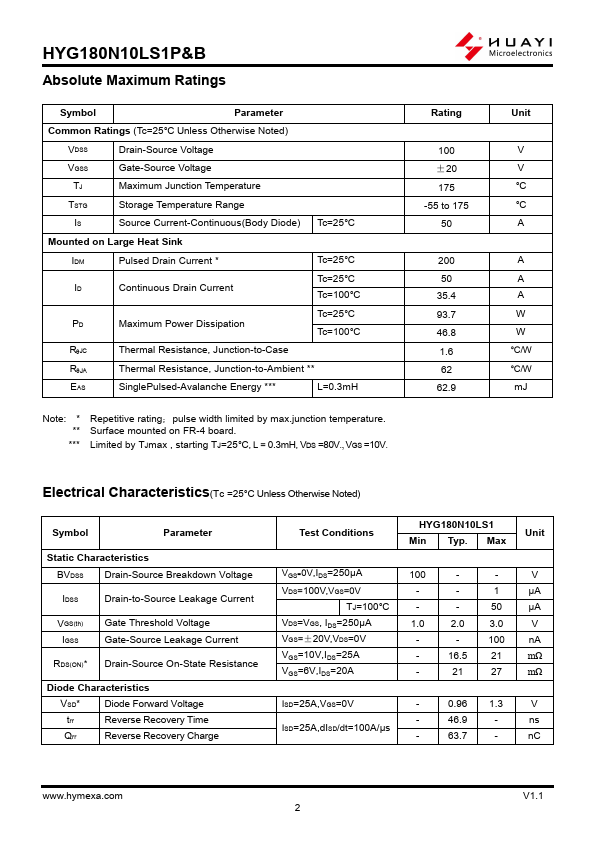

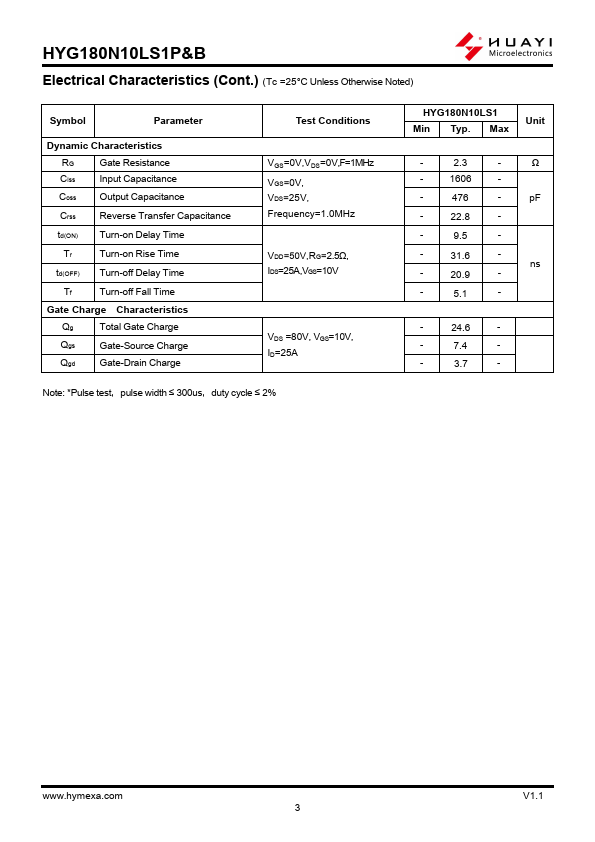

HYG180N10LS1P Datasheet Preview — Preview of HYG180N10LS1P PDF

Datasheet Specifications

Part number: HYG180N10LS1P
Manufacturer: HOOYI
File Size: 1.47 MB
Datasheet: HYG180N10LS1P-HOOYI.pdf
Description: N-Channel Enhancement Mode MOSFET

Applications

* High Frequency Point-of-Load Synchronous Buck Converter
* Power Tool Application Ordering and Marking Information Single N-Channel MOSFET P G180N10 XYMXXXXXX B G180N10 XYMXXXXXX Package Code P: TO-220FB-3L Date Code XYMXXXXXX B: TO-263-2L Note: HUAYI lead-free products contain moldi
