RFM113W - single-chip (G)FSK/OOK transmitters

RFM113W Description

.
The RFM113W is ultra low-cost, highly flexible, high performance, single-chip (G)FSK/OOK transmitters for various 240 to 480 MHz wireless application.

RFM113W Features

* Embedded EEPROM y Very Easy Development with RFPDK y All Features Programmable
* Frequency Range: 240 to 480 MHz
* OOK, FSK and GFSK Modulation
* Symbol Rate: y 0.5 to 30 ksps (OOK) y 0.5 to 100 ksps (FSK)
* Deviation: 1.0 to 200 kHz
* Output Power:

RFM113W Applications

* It is part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. With very low current consumption, the device modulates and transmits the data which is sent from the host MCU. An embedded EEPROM allows the frequency, output power and other f

📥 Download Datasheet

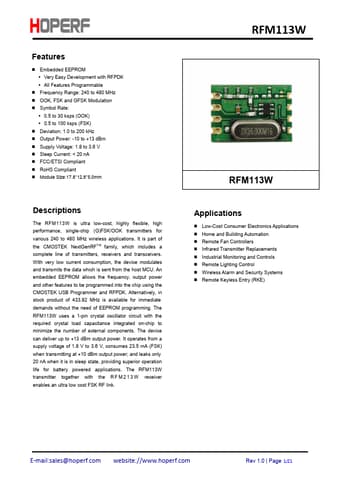

Preview of RFM113W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFM113W
Manufacturer
HOPERF
File Size
597.05 KB
Datasheet
RFM113W-HOPERF.pdf
Description
single-chip (G)FSK/OOK transmitters
