RFM12BP UNIVERSAL ISM BAND FSK TRANSCEIVER MODULE

RFM12BP Datasheet REV2.3 UNIVERSAL ISM BAND FSK TRANSCEIVER MODULE WITH 500mW OUTPUT POWER RFM12BP （the purpose of this spec covers mainly for the physical characteristic of the module, for register configure and its related command info please refer to RFM12B datasheet） General Introduction RFM12BP is a low costing ISM band transceiver module implemented with 500mW output power. It works signal ranges from 433/868/915MHZ bands, The SPI interface is used to communicate with microcontroller for.

RFM12BP Features

* High output power with 500mW

* High input sensitivity with -117dBm

* Low costing, high performance and price ratio

* PLL and zero IF technology

* Fast PLL lock time

* High resolution PLL with 2.5 KHz step

* High data rate (up to 115.2 kbps w

RFM12BP Datasheet (425.15 KB)

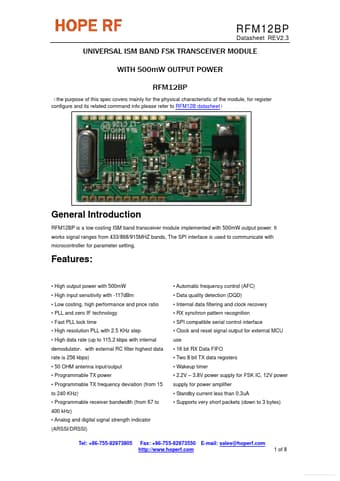

RFM12BP Datasheet Preview — Preview of RFM12BP PDF

Datasheet Details

Part number:

RFM12BP

Manufacturer:

HOPERF

File Size:

425.15 KB

Description:

Universal ism band fsk transceiver module.
