RFM12N18 - N-Channel Power MOSFET

RFM12N18 Description

Semiconductor RFM12N18, RFM12N20, RFP12N18, RFP12N20 12A, 180V and 200V, 0.250 Ohm, N-Channel Power MOSFETs .
These are N-Channel enhancement mode silicon gate power field effect transistors designed for applications such as switching regulators, switching conv.

RFM12N18 Features

* 12A, 180V and 200V
* rDS(ON) = 0.250Ω
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” [ /Title (RFM12 N18, RFM12 N20, RFP12N 18, RFP12N 20) /Subject (12A, 180V and 200V, 0.250 Ohm, NChannel Power MOSFETs) /Author () /Keywords (

RFM12N18 Applications

* such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA09293. BRAND RFM12N18

📥 Download Datasheet

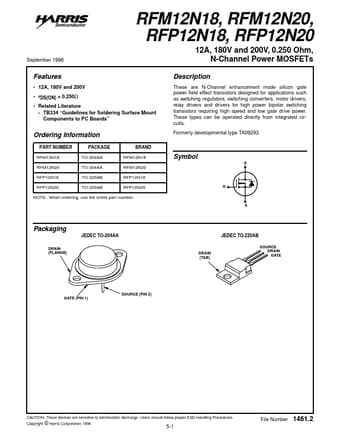

Preview of RFM12N18 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFM12N18
Manufacturer
Intersil Corporation
File Size
35.64 KB
Datasheet
RFM12N18_IntersilCorporation.pdf
Description
N-Channel Power MOSFET
