HPMX-2007 - Vector Modulator/Mixer

HPMX-2007 Description

Vector Modulator/Mixer Technical Data HPMX-2007 .

HPMX-2007 Features

* 5 MHz to 4 GHz Overall Operating Frequency Range
* 40-400 MHz LOmod range
* 2.7 - 5.5 V Operation (3 V, 25 mA)
* Differential High Impedance i, q Inputs
* On-Chip Linear RC Phase Shifter
* -23 dBm Modulator S. E. Output Power into 50 Ω at 150 MHz

HPMX-2007 Applications

* NADC, PDC, GSM Handsets and Base Stations
* PCS Handsets and Base Stations
* DLMR Handsets
* CDPD Radios
* ISM Band Wireless Links Functional Block Diagram i i LOmod q q φΣ LOmix LOmix RFOUT RFOUT MOD MOD IF IF 16 q 15 q 14 mod 13 mod 12 VCC 11 VEE 10

📥 Download Datasheet

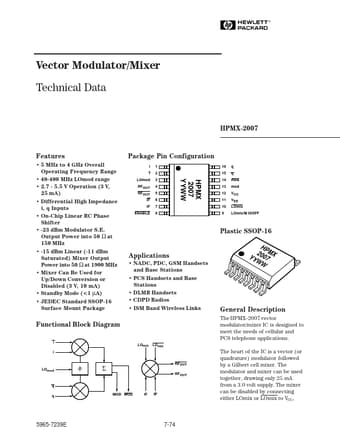

Preview of HPMX-2007 PDF
