HPMX-3003 - 1.5 - 2.5 GHz LNA Switch PA

HPMX-3003 Description

1.5 * 2.5 GHz LNA Switch PA Technical Data HPMX-3003 YY3H0WP0W3MX .
Hewlett-Packard’s HPMX-3003 combines a Low Noise Amplifier, GaAs MMIC switc.

HPMX-3003 Features

* GaAs MMIC LNA-SwitchPower Amp for 1.5
* 2.5 GHz Transceiver Use
* LNA: 2.2 dB NF, 13 dB Ga @ 1.9 GHz
* Switch: 55 dBm OIP @ 1.9␣ GHz
* Power Amp: +4 dBm in, +27.5 dBm out, 23.5 dB Gain, 35% ηadd @ 1.9 GHz
* 3 or 5 V Operation
* JEDEC Standard

HPMX-3003 Applications

* Personal Communications Systems (PCS)
* Cordless Telephone Systems
* 2400 MHz Wireless LANs and ISM Band Spread Spectrum Applications HPMX 3003 YYWW Functional Block Diagram LNA out C1 C2 PA in (VG1) 5965-1403E VD1 VG2 VD2 LNA in SW1 Antenna SW2 PA out 7-82 Gnd 1 Gn

📥 Download Datasheet

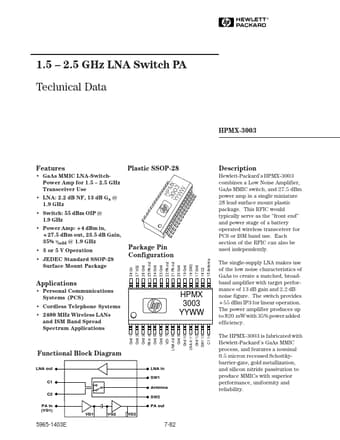

Preview of HPMX-3003 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HPMX-3003
Manufacturer
HP
File Size
77.67 KB
Datasheet
HPMX-3003-HP.pdf
Description
1.5 - 2.5 GHz LNA Switch PA
