HPMX-2003 Datasheet, Modulator, HP

HPMX-2003 Features

  • Modulator
  • 800
      –1000 MHz Output Frequency Range
  • +6 dBm Peak Pout
  • Unbalanced 50 Ω Output
  • Internal 90° Phase Shifter
  • 5 Volt, 36 mA Bi

PDF File Details

Part number:

HPMX-2003

Manufacturer:

HP

File Size:

287.28kb

Download:

📄 Datasheet

Description:

Silicon bipolar rfic 900 mhz vector modulator. Hewlett Packard’s HPMX-2003 is a Silicon RFIC direct conversion vector modulator designed for use at output frequencies between 800␣

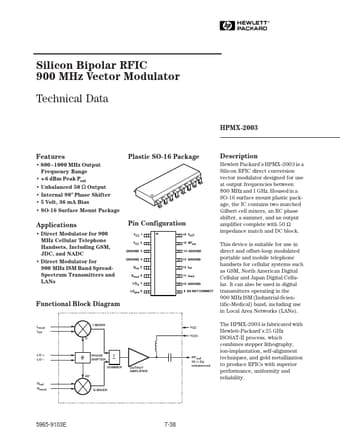

Datasheet Preview: HPMX-2003 📥 Download PDF (287.28kb)
Page 2 of HPMX-2003 Page 3 of HPMX-2003

HPMX-2003 Application

  • Applications
  • Direct Modulator for 900 MHz Cellular Telephone Handsets, Including GSM, JDC, and NADC
  • Direct Modulator for 900␣ MH
