DS1232

Micro-Monitor

DS1232 Features

* Halts and restarts an out-of-control μ-processor

* Holds μ-processor in check during power transients

* Automatically restarts μ-processor after power failure

* Monitors push-button for external override

* Accurate 5% or 10% μ-processor power supply monitori

DS1232 General Description

The DS1232 Micro-Monitor monitors three vital conditions for a microprocessor: power supply, software execution, and external override. First, a precision temperature compensated reference and comparator circuit monitors the status of VCC. When an out

*of

*tolerance condition occurs, .

DS1232 Datasheet (389.75 KB)

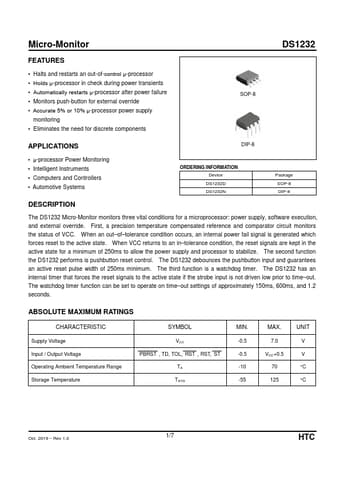

Preview of DS1232 PDF

Datasheet Details

Part number:

DS1232

Manufacturer:

HTC

File Size:

389.75 KB

Description:

Micro-monitor.
