MC34119D Low Power Audio Amplifier

The MC34119 is a low power audio amplifier integrated circuit intended (primarily) for telephone applications, such as in speakerphones. It provides differential speaker outputs to maximize output swing at low supply voltages (2.0V minimum). Coupling capacitors to the speaker are not required. Open.

MC34119D Features

* Wide Operating Supply Voltage Range (2.0V to 16V), Allows Telephone Line Powered Applications

* Low Quiescent Supply Current for Battery Powered Applications

* Chip Disable Input to Power Down the IC

* Low Power-Down Quiescent Current

* Drives a Wide Range

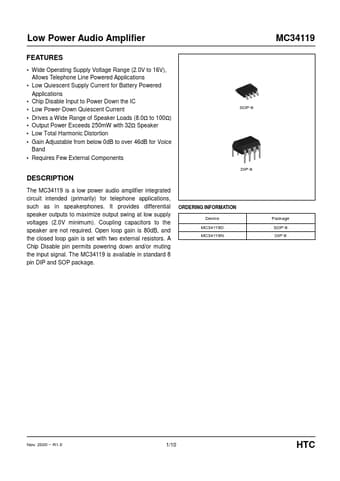

MC34119-HTC.pdf

MC34119D Datasheet Preview — This datasheet PDF includes multiple part numbers: MC34119D, MC34119. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MC34119D, MC34119

Manufacturer:

HTC

File Size:

240.20 KB

Description:

Low power audio amplifier.

Note:

This datasheet PDF includes multiple part numbers: MC34119D, MC34119.
Please refer to the document for exact specifications by model.
