MC34063AD

DC-DC Converter Controller

MC34063AD Features

* Output Switch Current In Excess of 1.5A

* 2% Reference Accuracy

* Low Quiescent Current : 2.5mA(Typ.)

* Operating From 3V to 40V

* Frequency Operation to 100KHz

* Active Current Limiting

* Moisture Sensitivity Level 3 for SMD Package

* MC34063AG is Halogen Free Prod

MC34063AD General Description

The MC34063A/B series is a monolithic control circuit delivering the main functions for DC-DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit driver and high current output switch.

MC34063AD Datasheet (501.23 KB)

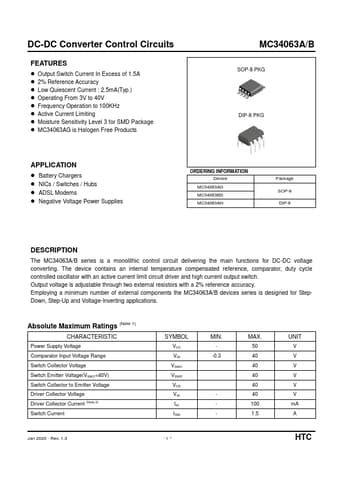

Preview of MC34063AD PDF
