MC34063AQ8

DC-to-DC Converter Controller

MC34063AQ8 Features

* 3V to 40V Input Voltage Operation

* Internal 1.6A Peak Current Switch

* Internal ±1.8% Reference

* Low Quiescent Current at 1.6mA

* Frequency Operation from 100Hz~100KHz

* Current Limiting Applications

* Saver for Cellular Phone

* DC

MC34063AQ8 General Description

The MC34063AQ8 is a monolithic control circuit containing the primary functions required for DC-to-DC converters. This device consists of an internal temperature compensated reference, comparator, control- led duty cycle oscillator with an active current limit circuit, driver and high current output.

MC34063AQ8 Datasheet (240.25 KB)

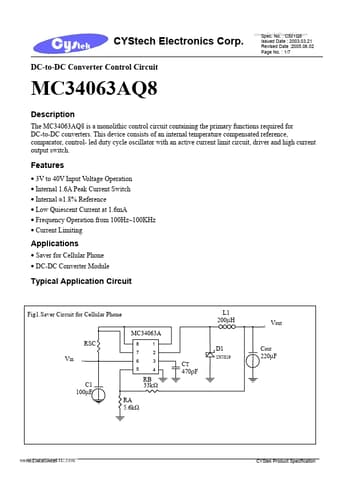

Preview of MC34063AQ8 PDF

Datasheet Details

Part number:

MC34063AQ8

Manufacturer:

Cystech Electonics

File Size:

240.25 KB

Description:

Dc-to-dc converter controller.
CYStech Electronics Corp. DC-to-DC Converter Control Circuit www.DataSheet4U.com Spec. No. : C501Q8 Issued Date : 2003.03.21 Revised Date :2005.06.02.
