MC34063BD DC-DC Converter Controller

The MC34063A/B series is a monolithic control circuit delivering the main functions for DC-DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit driver and high current output switch.

MC34063BD Features

* Output Switch Current In Excess of 1.5A

* 2% Reference Accuracy

* Low Quiescent Current : 2.5mA(Typ.)

* Operating From 3V to 40V

* Frequency Operation to 100KHz

* Active Current Limiting

* Moisture Sensitivity Level 3 for SMD Package

* MC34063AG is Halogen Free Prod

MC34063A-HTC.pdf

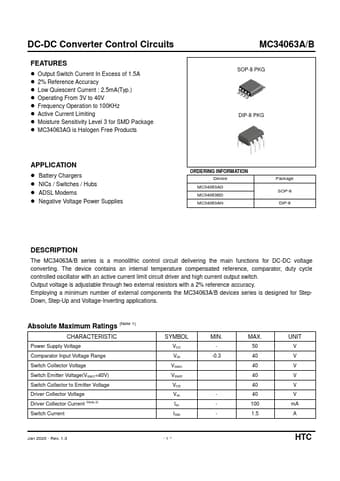

MC34063BD Datasheet Preview — This datasheet PDF includes multiple part numbers: MC34063BD, MC34063A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MC34063BD, MC34063A

Manufacturer:

HTC

File Size:

501.23 KB

Description:

Dc-dc converter controller.

Note:

This datasheet PDF includes multiple part numbers: MC34063BD, MC34063A.
Please refer to the document for exact specifications by model.
