Datasheet Specifications
- Part number
- 1SS13C1
- Manufacturer
- HUAGAO
- File Size
- 116.03 KB
- Datasheet

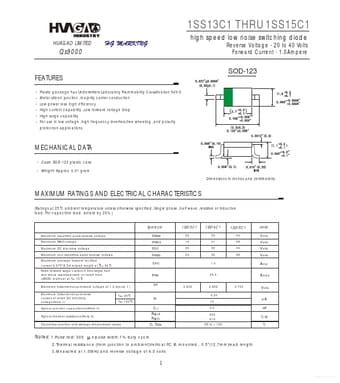

- 1SS13C1-HUAGAO.pdf
- Description
- (1SS13C1 - 1SS15C1) high speed low noise switching diode
Description
1SS13C1 THRU 1SS15C1 HUAGAO LIMITED high speed low noise switching diode Reverse Voltage - 20 to 40 Volts Forward Current - 1.0Ampere Qs9000 SOD-12.
Features
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Low power loss ,high efficiency High current capability ,Low forward voltage drop High surge capability For use in low voltage ,high frequency inverters,free wheeling ,anApplications
* MECHANICAL DATA Case: SOD-123 plastic case Weight: Approx. 0.01 gram Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (Ratings at 25 C ambient temperature unless otherwise specified ,Single phase ,half wave ,resistive or inductive load. For capacitive load, der1SS13C1 Distributors
