1SS133 - Switching diode

1SS133 Description

1SS133 Diodes Switching diode 1SS133 !Applications High speed switching !External dimensions (Units : mm) CATHODE BAND (YELLOW) φ0.4±0.1 !.

1SS133 Features

* 1) Glass sealed envelope. (MSD) 2) High speed. (trr=1.2ns Typ. ) 3) High reliability. 29.0±1.0 2.7±0.3 29.0±1.0 φ1.8±0.2 ROHM : MSD EIAJ :
* JEDEC : DO-34 !Construction Silicon epitaxial planar !Absolute maximum ratings (Ta=25°C) Parameter Peak reverse voltage DC reverse voltage Peak f

📥 Download Datasheet

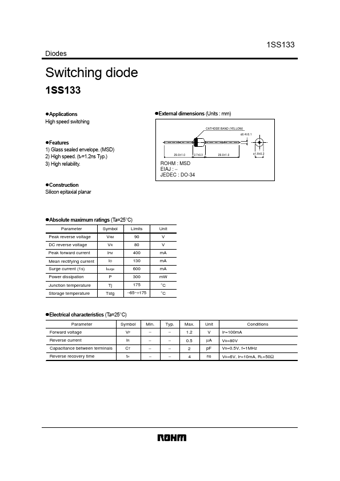

Preview of 1SS133 PDF
datasheet Preview Page 2

Datasheet Details

Part number
1SS133
Manufacturer
ROHM ↗
File Size
54.45 KB
Datasheet
1SS133_Rohm.pdf
Description
Switching diode
