1SS244 - Switching diode

Datasheet Summary

Features

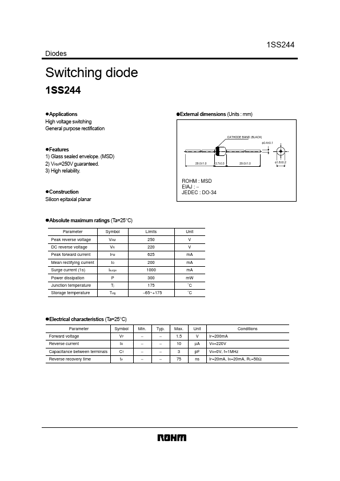

1) Glass sealed envelope. (MSD) 2) VRM=250V guaranteed. 3) High reliability. 29.0±1.0 2.7±0.3 29.0±1.0 φ1.8±0.2 !Construction Silicon epitaxial planar ROHM : MSD EIAJ :.
JEDEC : DO-34 !Absolute maximum ratings (Ta=25°C) Parameter Peak reverse voltage DC reverse voltage Peak forward current Mean rectifying current Surge current (1s) Power dissipation Junction temperature Storage temperature Symbol VRM VR IFM IO Isurge P Tj Tstg Limits 250 220 625 200 1000 300 175.
65~+175.

Rohm

📥 Download Datasheet
