CS10J65A3

Silicon N-Channel Power MOSFET

CS10J65A3 Features

* l Fast Switching l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test Applications： l Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： 650 V 10 A 62 W 0.62 Ω Symbol Parameter VDSS ID IDMa1 VGS EAS a2 dv/dta3 PD

CS10J65A3 General Description

CS10J65 A3, the silicon N-channel Enhanced MOSFETs, is obtained by the super junction technology which reduces the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher eff.

CS10J65A3 Datasheet (412.83 KB)

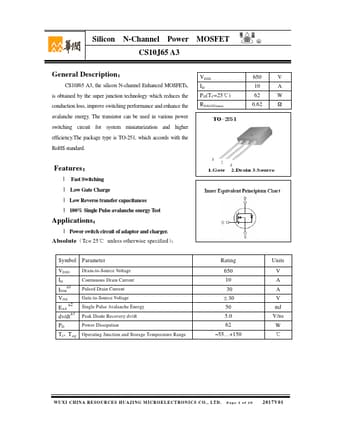

Preview of CS10J65A3 PDF

Datasheet Details

Part number:

CS10J65A3

Manufacturer:

HUAJING MICROELECTRONICS

File Size:

412.83 KB

Description:

Silicon n-channel power mosfet.
