CS10J65FA9-G

Silicon N-Channel Power MOSFET

CS10J65FA9-G Features

* l Fast Switching l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test l Halogen Free Applications： l Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID IDMa1 VGS EAS a2 PD TJ，Tstg Drain-t

CS10J65FA9-G General Description

CS10J65F A9-G, the silicon N-channel Enhanced MOSFETs, is obtained by the super junction technology which reduces the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher .

CS10J65FA9-G Datasheet (285.95 KB)

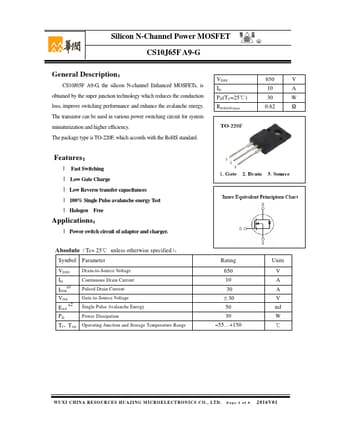

Preview of CS10J65FA9-G PDF

Datasheet Details

Part number:

CS10J65FA9-G

Manufacturer:

HUAJING MICROELECTRONICS

File Size:

285.95 KB

Description:

Silicon n-channel power mosfet.
