HYG013N04NR1B6 Datasheet - HUAYI

HYG013N04NR1B6 N-Channel Enhancement Mode MOSFET

Pin 1 Pin 7 TO-263-6L Applications * Load Switch * Lithium battery protect board Pin 1 Pin 2,3,5,6,7 Single N-Channel MOSFET Ordering and Marking Information B6 G013N04 XYMXXXXXX Package Code B6: TO-263-6L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/.

HYG013N04NR1B6-HUAYI.pdf

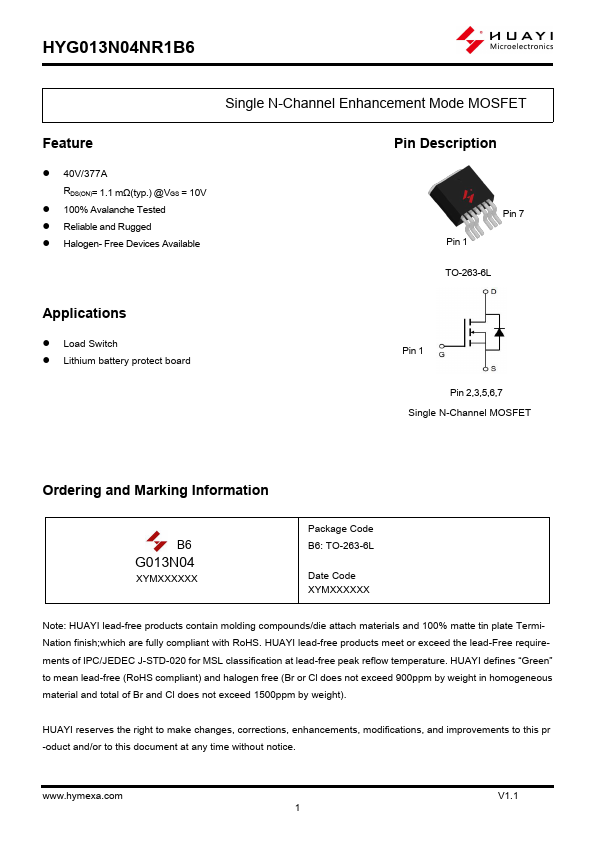

Preview of HYG013N04NR1B6 PDF

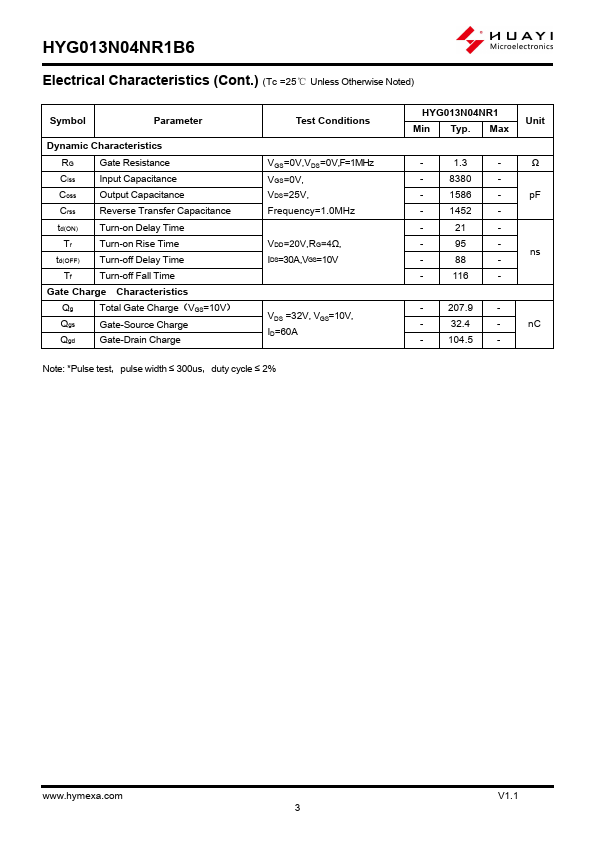

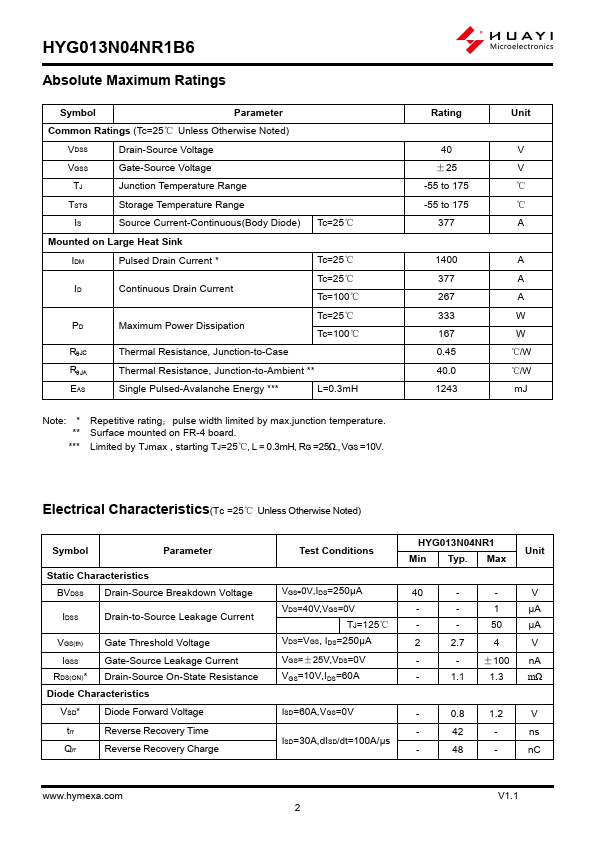

HYG013N04NR1B6 Datasheet Preview Page 2 HYG013N04NR1B6 Datasheet Preview Page 3

Datasheet Details

Part number:

HYG013N04NR1B6

Manufacturer:

HUAYI

File Size:

1.51 MB

Description:

N-channel enhancement mode mosfet.

HYG013N04NR1B6 Distributor
