HYG014N03LR1P N-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG014N03LR1P/B .
TO-220FB-3L TO-263-2L Applications. Battery Protection. Power management for inverter systems Ordering and Marking Information N-Channe.

📥 Download Datasheet

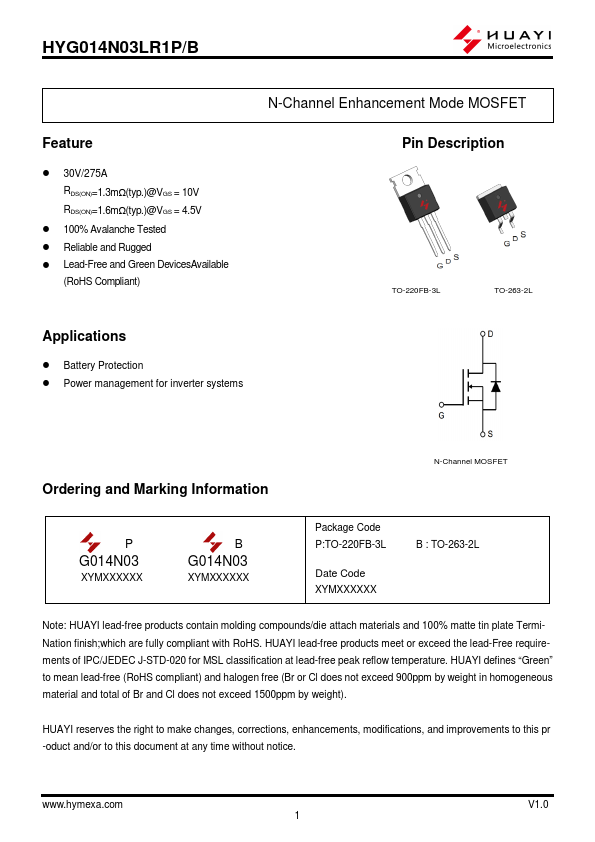

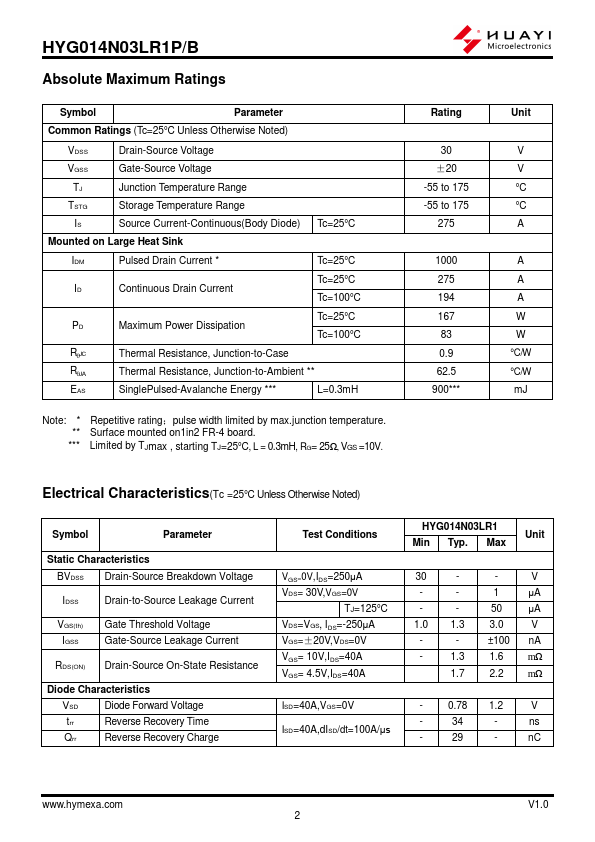

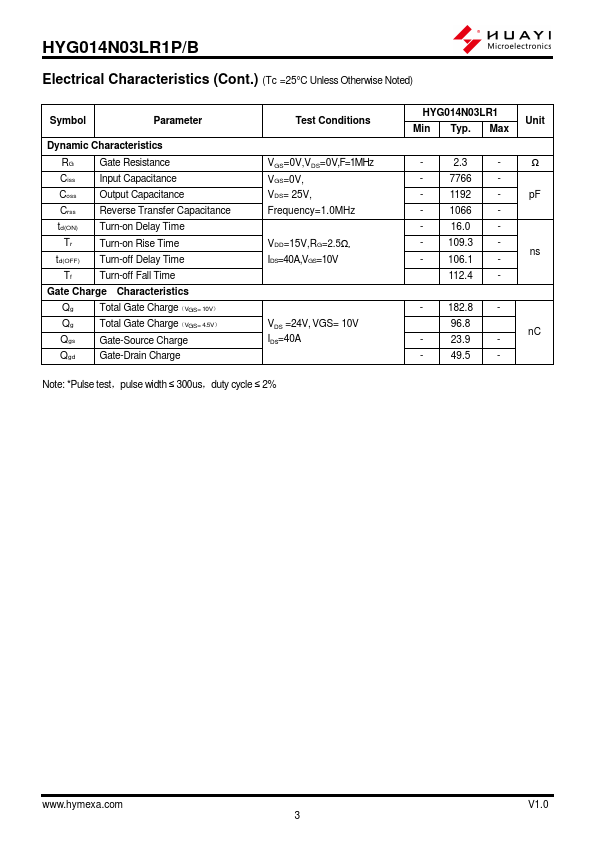

HYG014N03LR1P Datasheet Preview — Preview of HYG014N03LR1P PDF

Datasheet Specifications

Part number: HYG014N03LR1P
Manufacturer: HUAYI
File Size: 901.72 KB
Datasheet: HYG014N03LR1P-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET

Applications

* Battery Protection
* Power management for inverter systems Ordering and Marking Information N-Channel MOSFET P P G014N03 XYMXXXXXX B G014N03 XYMXXXXXX Package Code P:TO-220FB-3L Date Code XYMXXXXXX B : TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach
