HYG017N04NR1B6 N-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG017N04NR1B6 Single N-Channel Enhancement Mode MOSFET .
Pin 1 Pin 7 TO-263-6L Applications. Load Switch. Lithium battery protect board Pin 1 Pin 2,3,5,6,7 Single N-Channel MOSFET Ordering an.

📥 Download Datasheet

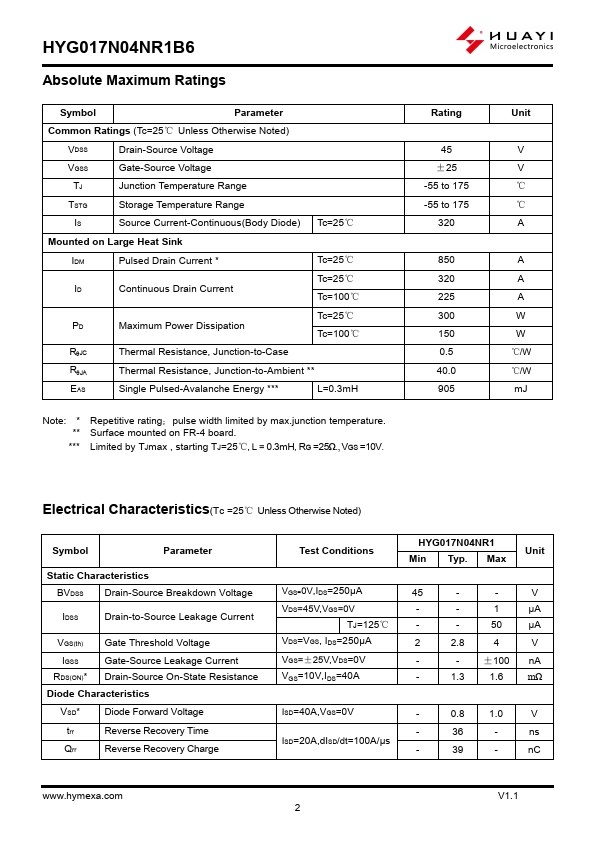

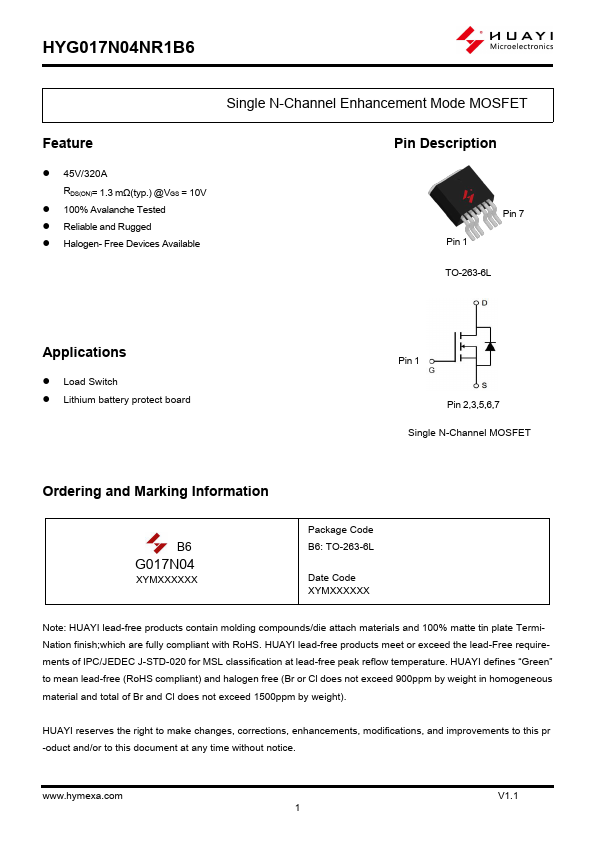

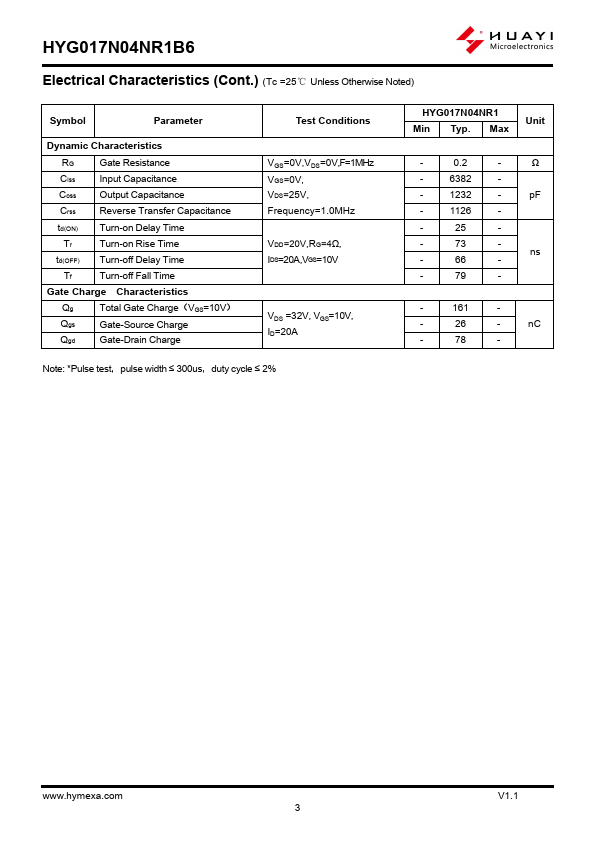

HYG017N04NR1B6 Datasheet Preview — Preview of HYG017N04NR1B6 PDF

Datasheet Specifications

Part number: HYG017N04NR1B6
Manufacturer: HUAYI
File Size: 1.41 MB
Datasheet: HYG017N04NR1B6-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET

Applications

* Load Switch
* Lithium battery protect board Pin 1 Pin 2,3,5,6,7 Single N-Channel MOSFET Ordering and Marking Information B6 G017N04 XYMXXXXXX Package Code B6: TO-263-6L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin
