G30FG, G30F Datasheet - HV Component

G30FG G-Low Current High Voltage Rectifiers

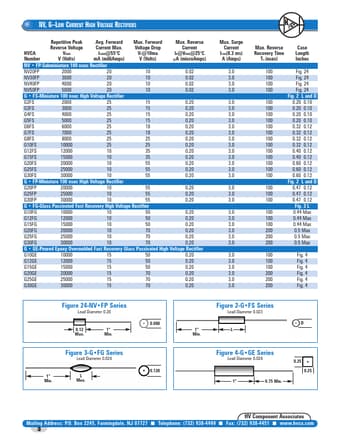

NV, G LOW CURRENT HIGH VOLTAGE RECTIFIERS HVCA Number Repetitive Peak Reverse Voltage VRRM V (Volts) Avg. Forward Current Max. IFAVM@55°C mA (milliAmps) Max. Forward Voltage Drop VF@10ma V (Volts) Max. Reverse Current IR@VRRM@25°C mA (microAmps) NV FP-Subminiature 100 nsec Rectifier NV20FP 2000 20 10 0.02 NV30FP 3000 20 10 0.02 NV40FP 4000 20 10 0.02 NV50FP 5000 20 10 0.02 G FS-Miniature 100 nsec High Voltage Rectifier G2FS 2000 25 15 0.20 .

G30F_HVComponent.pdf

This datasheet PDF includes multiple part numbers: G30FG, G30F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

G30FG, G30F

Manufacturer:

HV Component

File Size:

Direct Link

Description:

G-low current high voltage rectifiers.

Note:

This datasheet PDF includes multiple part numbers: G30FG, G30F.
Please refer to the document for exact specifications by model.
