www.DataSheet4U.com HANBit HMNR28D(V) 5.0 or 3.3V, 16K bit (2 Kbit x 8) TIMEKEEPER NVSRAM Part No.HMNR28D(V) GENERAL .
The HMNR28D(V) TIMEKEEPER SRAM is a 2Kb x 8 non-volatile static RAM and real time clock organized as 2,048 words by 8 bits.

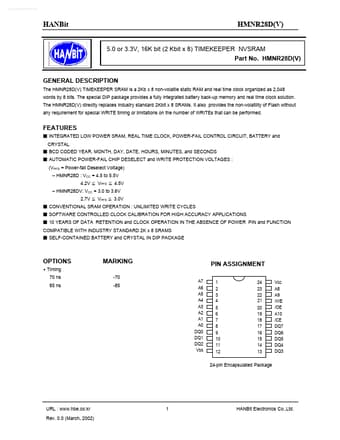

datasheet Preview Page 1 from Datasheet4u.com

HMNR28V_HanbitElectronics.pdf

HMNR28D Datasheet Preview — This datasheet PDF includes multiple part numbers: HMNR28D, HMNR28V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HMNR28D, HMNR28V

Manufacturer:

Hanbit Electronics

File Size:

297.62 KB

Description:

TIMEKEEPER NVSRAM

Note:

This datasheet PDF includes multiple part numbers: HMNR28D, HMNR28V.
Please refer to the document for exact specifications by model.

Features

* INTEGRATED LOW POWER SRAM, REAL TIME CLOCK, POWER-FAIL CONTROL CIRCUIT, BATTERY and CRYSTAL
* BCD CODED YEAR, MONTH, DAY, DATE, HOURS, MINUTES, and SECONDS
* AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION VOLTAGES : (VPFD = Power-fail Deselect Voltage)
* HMNR28D : VCC

Applications

* 10 YEARS OF DATA RETENTION and CLOCK OPERATION IN THE ABSENCE OF POWER PIN and FUNCTION COMPATIBLE WITH INDUSTRY STANDARD 2K x 8 SRAMS
* SELF-CONTAINED BATTERY and CRYSTAL IN DIP PACKAGE OPTIONS w Timing 70 ns 85 ns MARKING -70 -85 PIN ASSIGNMENT A7 A6 A5 A4 A3 A2 A1 A0 DQ0 DQ1 DQ2 Vss
