HMN10N65D, 650V GaN Enhancement-mode Power Transistor

HMN10N65D HMN10N65D 650V GaN Enhancement-mode Power Transistor General .
650V GaN-on-Silicon Enhancement-mode Power Transistor in Dual Flat No-lead Package (DFN) with 8 mm × 8 mm size Features. Enhancement-mode tra.

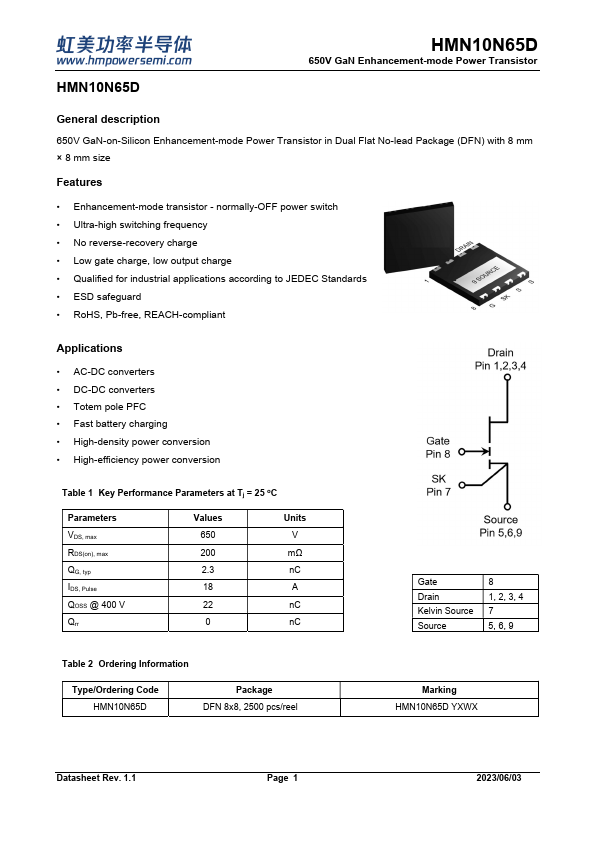

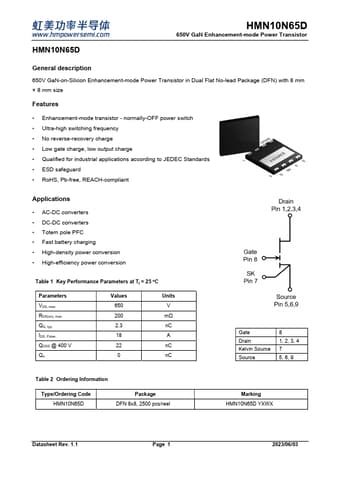

datasheet Preview Page 1 from Datasheet4u.com

HMN10N65D-HMSemiconductor.pdf

HMN10N65D Datasheet Preview — Preview of HMN10N65D PDF

Datasheet Details

Part number:

HMN10N65D

Manufacturer:

H&M Semiconductor

File Size:

4.39 MB

Description:

650V GaN Enhancement-mode Power Transistor

Features

* Enhancement-mode transistor - normally-OFF power switch
* Ultra-high switching frequency
* No reverse-recovery charge
* Low gate charge, low output charge

Applications

* according to JEDEC Standards
* ESD safeguard
* RoHS, Pb-free, REACH-compliant Applications
* AC-DC converters
* DC-DC converters
* Totem pole PFC
* Fast battery charging
* High-density power conversion
* High-efficiency power conversio
