HA9P2840-5 - 600MHz/ Very High Slew Rate Operational Amplifier

Datasheet Summary

Features

  • Low Supply Current.
  • 13mA Very High Slew Rate.
  • . . 625V/µs Open Loop Gain.
  • . . 25kV/V Wide Gain-Bandwidth (AV ≥ 10).
  • . . . . 600MHz Full Power Bandwidth.
  • . . . 10MHz Low Offset Voltage.
  • .0.6mV Different.

📥 Download Datasheet

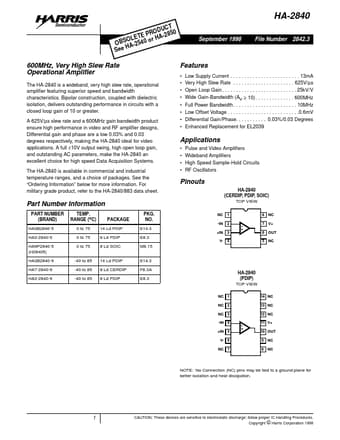

Datasheet preview – HA9P2840-5

Datasheet Details

Part number HA9P2840-5
Manufacturer Harris Corporation
File Size 142.78 KB
Description 600MHz/ Very High Slew Rate Operational Amplifier
Datasheet download datasheet HA9P2840-5 Datasheet
Additional preview pages of the HA9P2840-5 datasheet.

📁 Similar Datasheet

  • HA9P2850-5 - 470MHz/ Low Power/ High Slew Operational Amplifier (Intersil Corporation)
  • HA9P2425-5 - 3.2s Sample and Hold Amplifiers (Intersil Corporation)
  • HA9P2444-5 - 50MHz/ Selectable/ Four Channel Video Operational Amplifier (Intersil Corporation)
  • HA9P2525-5 - 20MHz/ High Slew Rate/ Uncompensated/ High Input Impedance/ Operational Amplifiers (Intersil Corporation)
  • HA9P2546-5 - 30MHz/ Voltage Output/ Two Quadrant Analog Multiplier (Intersil Corporation)
  • HA9P2556-9 - 57MHz/ Wideband/ Four Quadrant/ Voltage Output Analog Multiplier (Intersil Corporation)
  • HA9P2625-5 - 100MHz/ High Input Impedance/ Very Wideband/ Uncompensated Operational Amplifiers (Intersil Corporation)
  • HA9P2625-9 - 100MHz/ High Input Impedance/ Very Wideband/ Uncompensated Operational Amplifiers (Intersil Corporation)
  • HA9P2625-9 - Uncompensated Operational Amplifiers (Renesas)
  • HA9P4741-9 - Quad/ 3.5MHz/ Operational Amplifier (Intersil Corporation)
Other Datasheets by Harris Corporation

    Full PDF Text Transcription

    Click to expand full text
    HA-2840 Semiconductor CT ODU 850 R P 2 TE r HAOLE o OBS A-2540 H e Se September 1998 File Number 2842.3 600MHz, Very High Slew Rate Operational Amplifier The HA-2840 is a wideband, very high slew rate, operational amplifier featuring superior speed and bandwidth characteristics. Bipolar construction, coupled with dielectric isolation, delivers outstanding performance in circuits with a closed loop gain of 10 or greater. A 625V/µs slew rate and a 600MHz gain bandwidth product ensure high performance in video and RF amplifier designs. Differential gain and phase are a low 0.03% and 0.03 degrees respectively, making the HA-2840 ideal for video applications.
