HA9P2556-9, 57MHz/ Wideband/ Four Quadrant/ Voltage Output Analog Multiplier

HA-2556 Data Sheet September 1998 File Number 2477.5 57MHz, Wideband, Four Quadrant, Voltage Output Analog Multiplier The HA-2556 is a monolithic, hi.

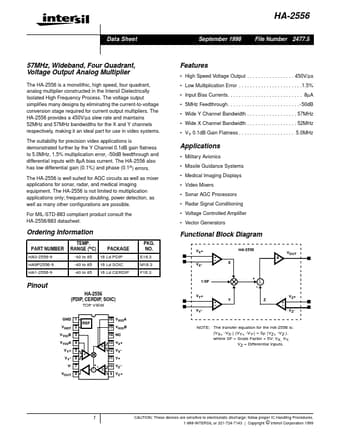

datasheet Preview Page 1 from Datasheet4u.com

HA9P2556-9_IntersilCorporation.pdf

HA9P2556-9 Datasheet Preview — Preview of HA9P2556-9 PDF

Datasheet Details

Part number:

HA9P2556-9

Manufacturer:

Intersil Corporation

File Size:

244.12 KB

Description:

57MHz/ Wideband/ Four Quadrant/ Voltage Output Analog Multiplier

Features

* High Speed Voltage Output
* . . 450V/µs
* Low Multiplication Error
* . . .1.5%
* Input Bias Currents
* . . 8µA
* 5MHz Feedthrough

Applications

* is demonstrated further by the Y Channel 0.1dB gain ﬂatness to 5.0MHz, 1.5% multiplication error, -50dB feedthrough and differential inputs with 8µA bias current. The HA-2556 also has low differential gain (0.1%) and phase (0.1o) errors. The HA-2556 is well suited for AGC circuits as well as mixer a
