HA9P2625-5 - 100MHz/ High Input Impedance/ Very Wideband/ Uncompensated Operational Amplifiers

HA9P2625-5 Description

HA-2620, HA-2625 Data Sheet November 1999 File Number 2903.4 100MHz, High Input Impedance, Very Wideband, Uncompensated Operational Amplifiers HA-2620.

HA9P2625-5 Features

* Gain Bandwidth Product (AV ≥ 5)
* . . . 100MHz
* High Input Impedance
* . 500MΩ
* Low Input Bias Current
* . . . . 1nA
* Low Input Offset Current

HA9P2625-5 Applications

* The frequency response of the amplifier can be tailored to exact design requirements by means of an external bandwidth control capacitor connected from the Comp pin to GND. In addition to its application in pulse and video amplifier designs, HA-2620/2625 is particularly suited to other high performan

📥 Download Datasheet

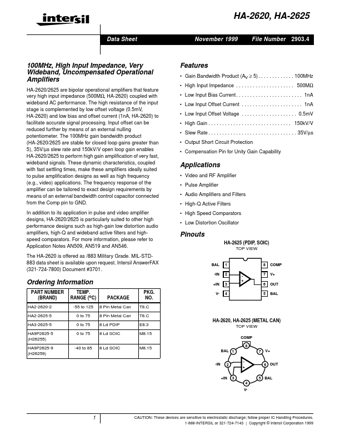

Preview of HA9P2625-5 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HA9P2625-5
Manufacturer
Intersil Corporation
File Size
120.49 KB
Datasheet
HA9P2625-5_IntersilCorporation.pdf
Description
100MHz/ High Input Impedance/ Very Wideband/ Uncompensated Operational Amplifiers
