HA9P2546-5 30MHz/ Voltage Output/ Two Quadrant Analog Multiplier

HA-2546 Data Sheet September 1998 File Number 2861.3 30MHz, Voltage Output, Two Quadrant Analog Multiplier The HA-2546 is a monolithic, high speed, two quadrant, analog multiplier constructed in the Intersil Dielectrically Isolated High Frequency Process. The HA-2546 has a voltage output with a 30MHz signal bandwidth, 300V/µs slew rate and a 17MHz control bandwidth. High bandwidth and slew rate make this part an ideal component for use in video systems. The suitability for precision video appli.

HA9P2546-5 Datasheet (641.47 KB)

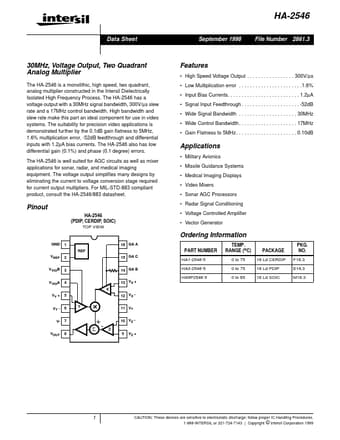

HA9P2546-5 Datasheet Preview — Preview of HA9P2546-5 PDF

Datasheet Details

Part number:

HA9P2546-5

Manufacturer:

Intersil Corporation

File Size:

641.47 KB

Description:

30mhz/ voltage output/ two quadrant analog multiplier.
