IRF9540 - P-Channel Power MOSFET

Product Overview

📥 Download Datasheet

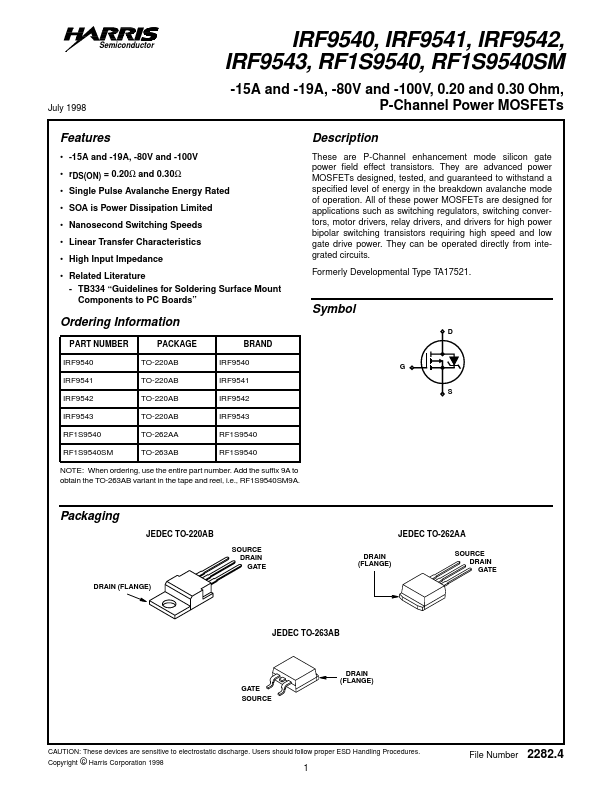

Datasheet preview – IRF9540

Datasheet Details

Part number IRF9540
Manufacturer Harris
File Size 53.19 KB
Description P-Channel Power MOSFET
Datasheet download datasheet IRF9540 Datasheet

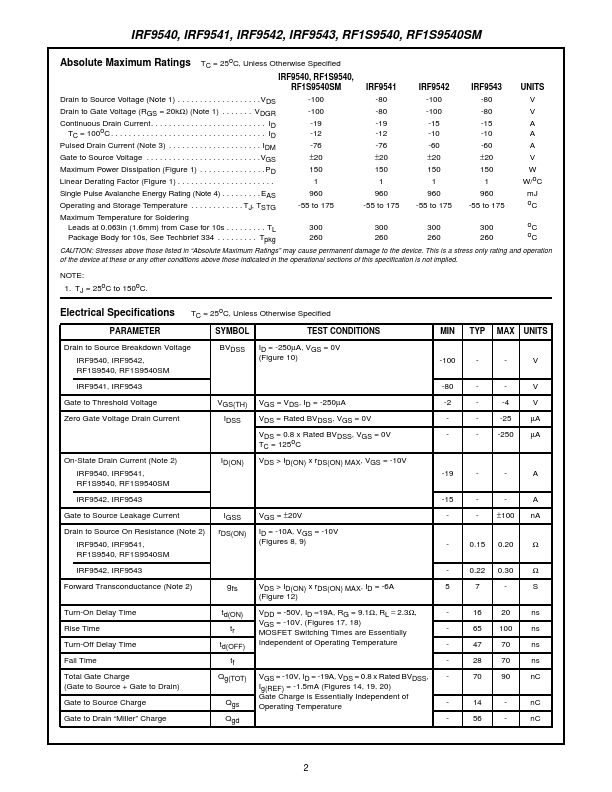

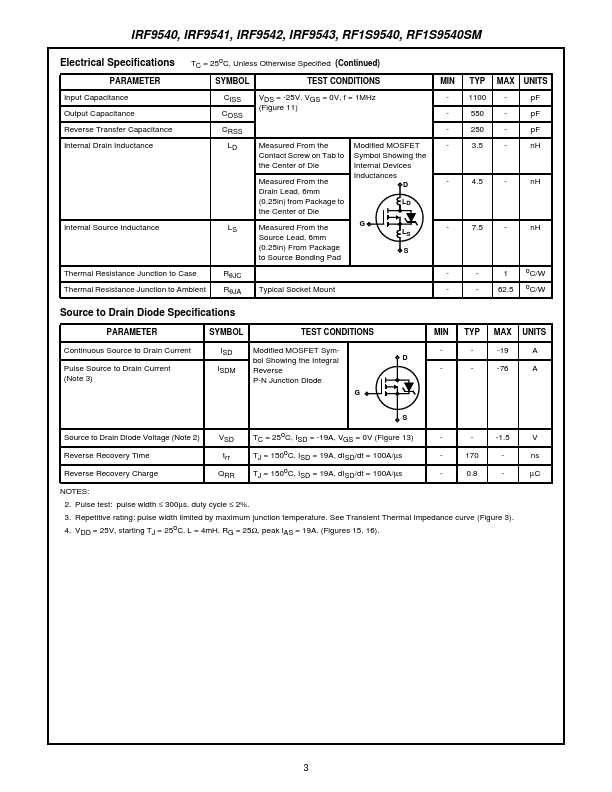

Additional preview pages of the IRF9540 datasheet.

Product details

Description

-15A and -19A, -80V and -100V rDS(ON) = 0.20Ω and 0.30Ω Single Pulse Avalanche Energy Rated SOA is Power Dissipation Limited Nanosecond Switching Speeds Linear Transfer Characteristics High Input Impedance Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER PACKAGE BRAND These are P-Channel enhancement mode silicon gate power field effect t
