IRF140 Datasheet, Mosfets, Harris

IRF140 Features

  • Mosfets
  • 28A and 25A, 80V and 100V
  • rDS(ON) = 0.077Ω and 0.100Ω
  • Single Pulse Avalanche Energy Rated
  • SOA is Power-Dissipation Limited
  • Nanosecond S

PDF File Details

Part number:

IRF140

Manufacturer:

Harris

File Size:

66.87kb

Download:

📄 Datasheet

Description:

N-channel power mosfets. These are N-Channel enhancement mode silicon gate power field effect transistors. They are advanced power MOSFETs designed, tested, an

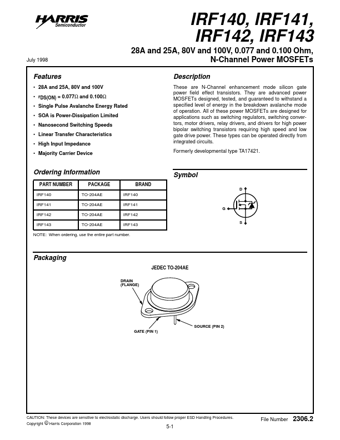

Datasheet Preview: IRF140 📥 Download PDF (66.87kb)
Page 2 of IRF140 Page 3 of IRF140

IRF140 Application

  • Applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transist
