IRF221 - N-Channel Power MOSFETs

This page provides the datasheet information for the IRF221, a member of the IRF220 N-Channel Power MOSFETs family.

Datasheet Summary

Description

These are N-Channel enhancement mode silicon gate power field effect transistors.

They are advanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation.

Features

  • 4.0A and 5.0A, 150V and 200V.
  • rDS(ON) = 0.8Ω and 1.2Ω.
  • SOA is Power Dissipation Limited.
  • Nanosecond Switching Speeds.
  • Linear Transfer Characteristics.
  • High Input Impedance.
  • Majority Carrier Device.
  • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER.

📥 Download Datasheet

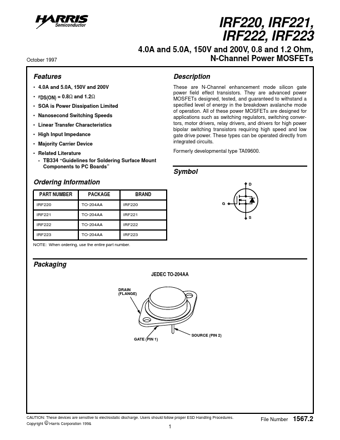

Datasheet preview – IRF221
