IRF320 Datasheet, Mosfets, Harris

IRF320 Features

  • Mosfets
  • 2.8A and 3.3A, 350V and 400V
  • rDS(ON) = 1.8Ω and 2.5Ω
  • Single Pulse Avalanche Energy Rated
  • SOA is Power Dissipation Limited
  • Nanosecond Sw

PDF File Details

Part number:

IRF320

Manufacturer:

Harris

File Size:

67.13kb

Download:

📄 Datasheet

Description:

N-channel power mosfets. These are N-Channel enhancement mode silicon gate power field effect transistors. They are advanced power MOSFETs designed, tested, an

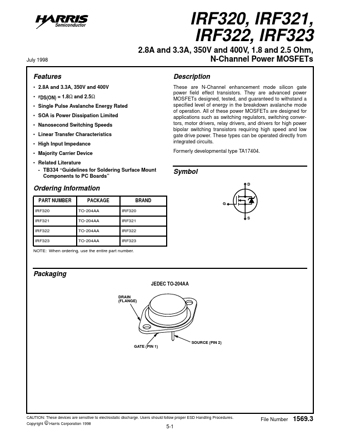

Datasheet Preview: IRF320 📥 Download PDF (67.13kb)
Page 2 of IRF320 Page 3 of IRF320

IRF320 Application

  • Applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transist
