IRF1404S - Power MOSFET

Datasheet Summary

Description

Seventh Generation HEXFET Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

Features

  • D. U. T. VDS Waveform Diode Recovery dv/dt VDD Re-Applied Voltage Inductor Curent Body Diode Forward Drop Ripple ≤ 5% ISD.
  • VGS = 5V for Logic Level Devices Fig 14. For N-channel HEXFET® Power MOSFETs www. irf. com 7 IRF1404S/L D2Pak Package Outline D2Pak Part Marking Information THIS IS AN IRF530S WITH LOT CODE 8024 AS S EMBLED ON WW 02, 2000 IN THE AS S EMBLY LINE "L" INT.

📥 Download Datasheet

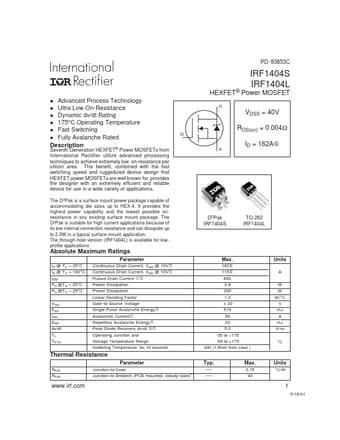

Datasheet preview – IRF1404S

📁 Similar Datasheet

  • IRF1404S - N-Channel MOSFET (INCHANGE)
  • IRF1404 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF1404Z - N-Channel MOSFET (INCHANGE)
  • IRF1404ZS - N-Channel MOSFET (INCHANGE)
  • IRF140 - N-Channel Power MOSFETs (Harris)
  • IRF140 - N-Channel Power MOSFET (Seme LAB)
  • IRF140 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF140 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF140 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF1405 - N-Channel MOSFET (INCHANGE)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD -93853C HEXFET® Power MOSFET Advanced Process Technology Ultra Low On-Resistance l Dynamic dv/dt Rating l 175°C Operating Temperature l Fast Switching l Fully Avalanche Rated Description ® l l IRF1404S IRF1404L D VDSS = 40V G S RDS(on) = 0.004Ω ID = 162A† Seventh Generation HEXFET Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4.
