HEDS-9711

200 lpi Analog Output Small Optical Encoder Modules

HEDS-9711 Features

* Small size

* Multiple mounting options

* 200 lpi resolution

* Linear and rotary options available

* Insensitive to radial and axial play

* 15°C to 45°C operating temperature

* Two-channel analog output

* Single 5 V supply

* Wa

HEDS-9711 General Description

The HEDS-9710/HEDS-9711 series is a high performance, low cost, optical incremental encoder module. When operated in conjunction with either a codewheel or codestrip, this module detects rotary or linear position. The encoder module consists of a lensed LED source and a detector IC enclosed in a sma.

HEDS-9711 Datasheet (253.32 KB)

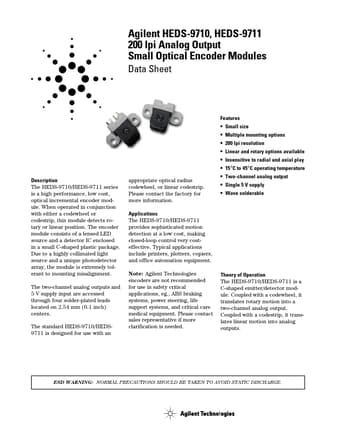

Preview of HEDS-9711 PDF

Datasheet Details

Part number:

HEDS-9711

Manufacturer:

Hewlett-Packard

File Size:

253.32 KB

Description:

200 lpi analog output small optical encoder modules.
