HEDS-9700 Datasheet, Modules, AVAGO

HEDS-9700 Features

• Modules x Small Size x Low Cost x Multiple Mounting Options x Wide Resolution Range x Linear and Rotary Options Available x No Signal Adjustment Required x Insensitive to Radial and Axial Play

PDF File Details

Part number:

HEDS-9700

Manufacturer:

AVAGO

File Size:

232.90kb

Download:

📄 Datasheet

Description:

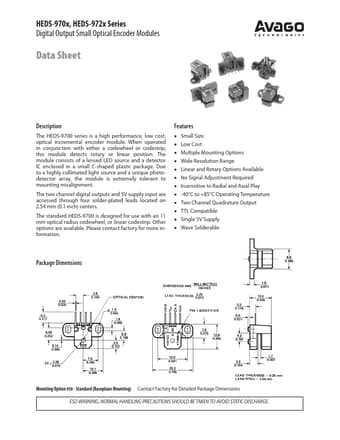

Digital output small optical encoder modules. The HEDS-9700 series is a high performance, low cost, optical incremental encoder module. When operated in conjunction with either a

HEDS-9700 Application

• Applications Theory of Operation The HEDS-9700 provides sophisticated motion detection The HEDS-9700 is a C-shaped emitter/detector module. at a
