HEDS-9100, HEDS-9200 Datasheet - Agilent

HEDS-9100 (HEDS-9x00) Two Channel High Resolution Optical Incremental Encoder Modules

The HEDS-9000 Options T and U and the HEDS-9100 Options B and J are high resolution two channel rotary incremental encoder modules. These options are an extension of our popular HEDS-9000 and HEDS-9100 series. When used with a codewheel, these modules detect relative rotary position. The HEDS-9200 O.

HEDS-9100 Features

* High Resolution: Up to 2048 Cycles per Revolution

* Up to 8192 Counts per Revolution with 4X Decoding

* Two Channel Quadrature Output

* Low Cost

* Easy to Mount

* No Signal Adjustment Required

* Small Size

* -40°C to 100 °C Operating

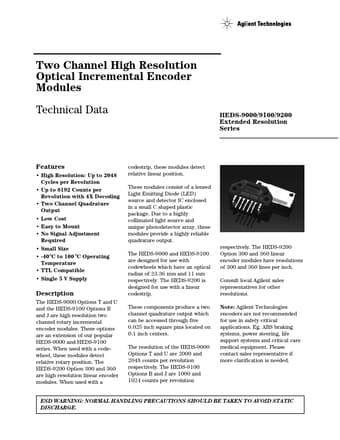

HEDS-9200_Agilent.pdf

HEDS-9100 Datasheet Preview — This datasheet PDF includes multiple part numbers: HEDS-9100, HEDS-9200. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HEDS-9100, HEDS-9200

Manufacturer:

Agilent

File Size:

312.22 KB

Description:

(heds-9x00) two channel high resolution optical incremental encoder modules.

Note:

This datasheet PDF includes multiple part numbers: HEDS-9100, HEDS-9200.
Please refer to the document for exact specifications by model.
