HEDS-9730

Small Optical Encoder

HEDS-9730 Features

* Small size

* Low cost

* Multiple mounting options

* Wide resolution range

* Linear and rotary options available

* No signal adjustment required

* Insensitive to radial and axial play

* - 40°C to +85°C operating temperature

HEDS-9730 General Description

The HEDS-973x series is a high performance, low cost, optical incremental encoder module. When operated in conjunction with either a codewheel or codestrip, this module detects rotary or linear position. The module consists of a lensed LED source and a detector IC enclosed in a small C-shaped plasti.

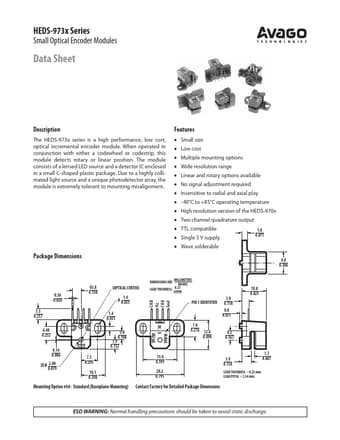

HEDS-9730 Datasheet (612.00 KB)
