HEDS-9000

(HEDS-9x00) Two Channel High Resolution Optical Incremental Encoder Modules

HEDS-9000 Features

* High Resolution: Up to 2048 Cycles per Revolution

* Up to 8192 Counts per Revolution with 4X Decoding

* Two Channel Quadrature Output

* Low Cost

* Easy to Mount

* No Signal Adjustment Required

* Small Size

* -40°C to 100 °C Operating

HEDS-9000 General Description

The HEDS-9000 Options T and U and the HEDS-9100 Options B and J are high resolution two channel rotary incremental encoder modules. These options are an extension of our popular HEDS-9000 and HEDS-9100 series. When used with a codewheel, these modules detect relative rotary position. The HEDS-9200 O.

HEDS-9000 Datasheet (312.22 KB)

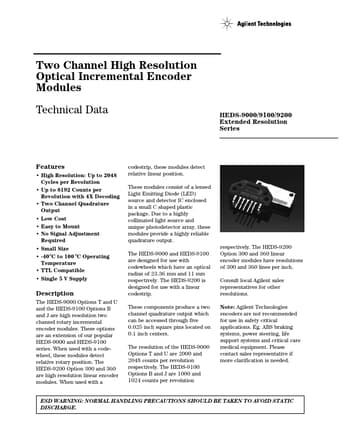

Preview of HEDS-9000 PDF

Datasheet Details

Part number:

HEDS-9000

Manufacturer:

Agilent

File Size:

312.22 KB

Description:

(heds-9x00) two channel high resolution optical incremental encoder modules.
www.DataSheet4U.com Two Channel High Resolution Optical Incremental Encoder Modules Technical Data HEDS-9000/9100/9200 Extended Resolution Series Fe.
