HEDS-9720, HEDS-9700 Datasheet - AVAGO

HEDS-9720 Digital Output Small Optical Encoder Modules

The HEDS-9700 series is a high performance, low cost, optical incremental encoder module. When operated in conjunction with either a codewheel or codestrip, this module detects rotary or linear position. The module consists of a lensed LED source and a detector IC enclosed in a small C-shaped plasti.

HEDS-9720 Features

* x Small Size x Low Cost x Multiple Mounting Options x Wide Resolution Range x Linear and Rotary Options Available x No Signal Adjustment Required x Insensitive to Radial and Axial Play x -40°C to +85°C Operating Temperature x Two Channel Quadrature Output x TTL Compatible x Single 5V Supply x Wave S

HEDS-9700-AVAGO.pdf

This datasheet PDF includes multiple part numbers: HEDS-9720, HEDS-9700. Please refer to the document for exact specifications by model.

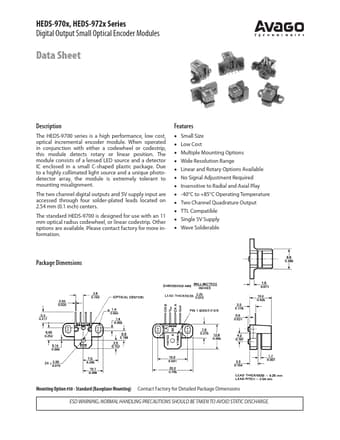

HEDS-9720 Datasheet Preview Page 2 HEDS-9720 Datasheet Preview Page 3

Datasheet Details

Part number:

HEDS-9720, HEDS-9700

Manufacturer:

AVAGO

File Size:

232.90 KB

Description:

Digital output small optical encoder modules.

Note:

This datasheet PDF includes multiple part numbers: HEDS-9720, HEDS-9700.
Please refer to the document for exact specifications by model.
