MSA1104, MSA-1104_Hewlett - Cascadable Silicon Bipolar MMIC Amplifier

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSA1104, MSA-1104_Hewlett. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MSA1104, MSA-1104_Hewlett
Manufacturer Hewlett-Packard
File Size 44.00 KB
Description Cascadable Silicon Bipolar MMIC Amplifier
Datasheet download datasheet MSA-1104_Hewlett-Packard.pdf
Note This datasheet PDF includes multiple part numbers: MSA1104, MSA-1104_Hewlett.
Please refer to the document for exact specifications by model.

MSA1104 Product details

Description

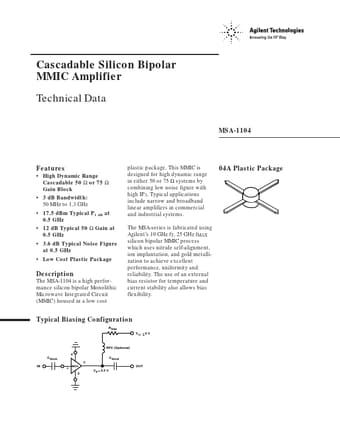

The MSA-1104 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost Typical Biasing Configuration R bias VCC > 8 V RFC (Optional) 4 C block 3 IN 1 MSA C block OUT Vd = 5.5 V 2 2 MSA-1104 Absolute Maximum Ratings Parameter Device Current Power Dissipation[2,3] RF Input Power Junction Temperature Storage Temperature Absolute Maximum[1] 80 mA 550 mW +1 dBm 150°C 65 to 150°C Thermal Resistance[2,4]: θjc = 115°C/W Notes: 1. Permanent
