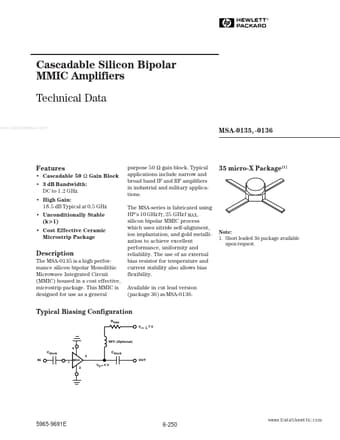

MSA-0136 Cascadable Silicon Bipolar MMIC Amplifier

The MSA-0135 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a cost effective, microstrip package. This MMIC is designed for use as a general Typical Biasing Configuration R bias VCC > 7 V RFC (Optional) 4 C block 3 IN 1 MSA C block OUT Vd = 5 V 2 .

MSA-0136 Features

* Cascadable 50 Ω Gain Block

* 3 dB Bandwidth: DC to 1.2 GHz

* High Gain: 18.5 dB Typical at 0.5 GHz

* Unconditionally Stable (k>1)

* Cost Effective Ceramic Microstrip Package purpose 50 Ω gain block. Typical applications include narrow and broad band IF and
