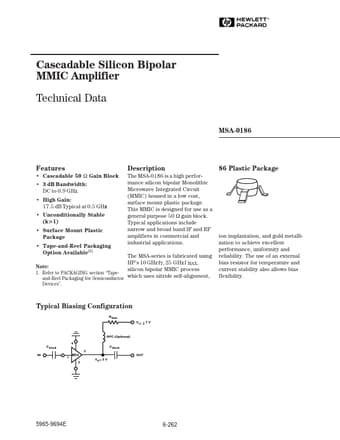

MSA-0186 Datasheet, amplifier equivalent, Hewlett-Packard

MSA-0186 Features

• Amplifier
• Cascadable 50 Ω Gain Block
• 3 dB Bandwidth: DC to 0.9 GHz
• High Gain: 17.5 dB Typical at 0.5 GHz
• Unconditionally Stable (k>1)
• Surface Mou

PDF File Details

Part number:

MSA-0186

Manufacturer:

Hewlett-Packard

File Size:

52.14kb

Download:

📄 Datasheet

Description:

Cascadable silicon bipolar mmic amplifier. The MSA-0186 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost, surface mount

MSA-0186 Application

• Applications include narrow and broad band IF and RF amplifiers in commercial and industrial applications. 86 Plastic Package The MSA-series is fa
