MSA0285 - Cascadable Silicon Bipolar MMIC Amplifier

MSA0285 Description

Cascadable Silicon Bipolar MMIC␣ Amplifier Technical Data MSA-0285 .
The MSA-0285 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost plastic package.

MSA0285 Features

* Cascadable 50 Ω Gain Block
* 3 dB Bandwidth: DC to 2.6 GHz
* 12.0 dB Typical Gain at 1.0␣ GHz
* Unconditionally Stable (k>1)

MSA0285 Applications

* include narrow and broad band IF and RF amplifiers in industrial and military applications. The MSA-series is fabricated using HP’s 10 GHz fT, 25␣ GHz f MAX, silicon bipolar MMIC process which uses nitride self-alignment, ion implantation, and gold metallization to achieve excellent performance, uni

📥 Download Datasheet

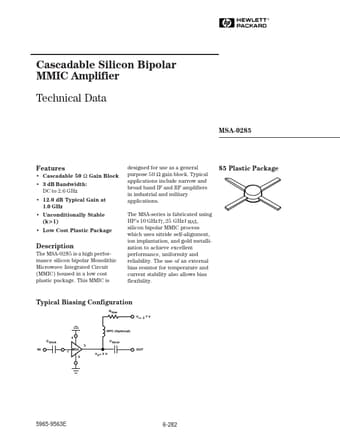

Preview of MSA0285 PDF
