MSA0104 - Cascadable Silicon Bipolar MMIC Amplifier

The MSA-0104 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost plastic package.

This MMIC is Typical Biasing Configuration R bias VCC > 7 V RFC (Optional) 4 C block 3 IN 1 MSA C block OUT Vd = 5 V 2 5965-9690E 6-246 MSA-0104 Absolute Max

MSA0104 Features

* Cascadable 50 Ω Gain Block

* 3 dB Bandwidth: DC to 0.8 GHz

* High Gain: 17.0 dB Typical at 0.5 GHz

* Unconditionally Stable (k>1)

* Low Cost Plastic Package designed for use as a general purpose 50 Ω gain block. Typical applications include narrow and wide

MSA-0104_Hewlett-Packard.pdf

This datasheet PDF includes multiple part numbers: MSA0104, MSA-0104_Hewlett. Please refer to the document for exact specifications by model.

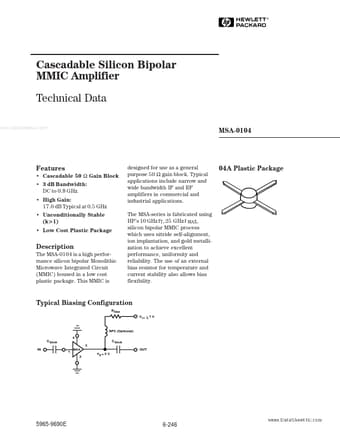

MSA0104 Datasheet Preview Page 2 MSA0104 Datasheet Preview Page 3

Datasheet Details

Part number:

MSA0104, MSA-0104_Hewlett

Manufacturer:

Hewlett-Packard

File Size:

80.63 KB

Description:

Cascadable silicon bipolar mmic amplifier.

Note:

This datasheet PDF includes multiple part numbers: MSA0104, MSA-0104_Hewlett.
Please refer to the document for exact specifications by model.
