MSA-0185

Cascadable Silicon Bipolar MMIC Amplifier

MSA-0185 Features

* Cascadable 50 Ω Gain Block

* 3 dB Bandwidth: DC to 1.0 GHz

* High Gain: 17.5 dB Typical at 0.5 GHz

* Unconditionally Stable (k>1)

* Low Cost Plastic Package designed for use as a general purpose 50 Ω gain block. Typical applications include narrow and broad

MSA-0185 General Description

The MSA-0185 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost plastic package. This MMIC is Typical Biasing Configuration R bias VCC > 7 V RFC (Optional) 4 C block 3 IN 1 MSA C block OUT Vd = 5 V 2 5965-9693E 6-258 MSA-0185 Absolute Max.

MSA-0185 Datasheet (51.99 KB)

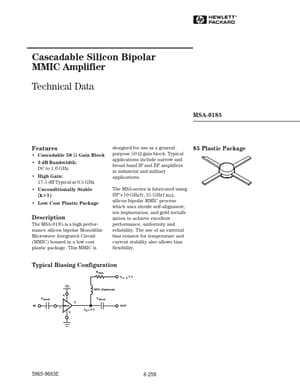

Preview of MSA-0185 PDF

Datasheet Details

Part number:

MSA-0185

Manufacturer:

Hewlett-Packard

File Size:

51.99 KB

Description:

Cascadable silicon bipolar mmic amplifier.
